Pneumatics remain the backbone of factory motion: fast, clean, intrinsically safe in hazardous atmospheres, and straightforward to maintain by any trained technician. In applications where force, speed, and reliability matter more than precise intermediate positioning, pneumatic actuators consistently outperform electromechanical alternatives on both cost and durability. Getting the specification right is what separates a smooth, efficient production line from one plagued by slow cycles, excessive air consumption, and component failures at inconvenient moments.

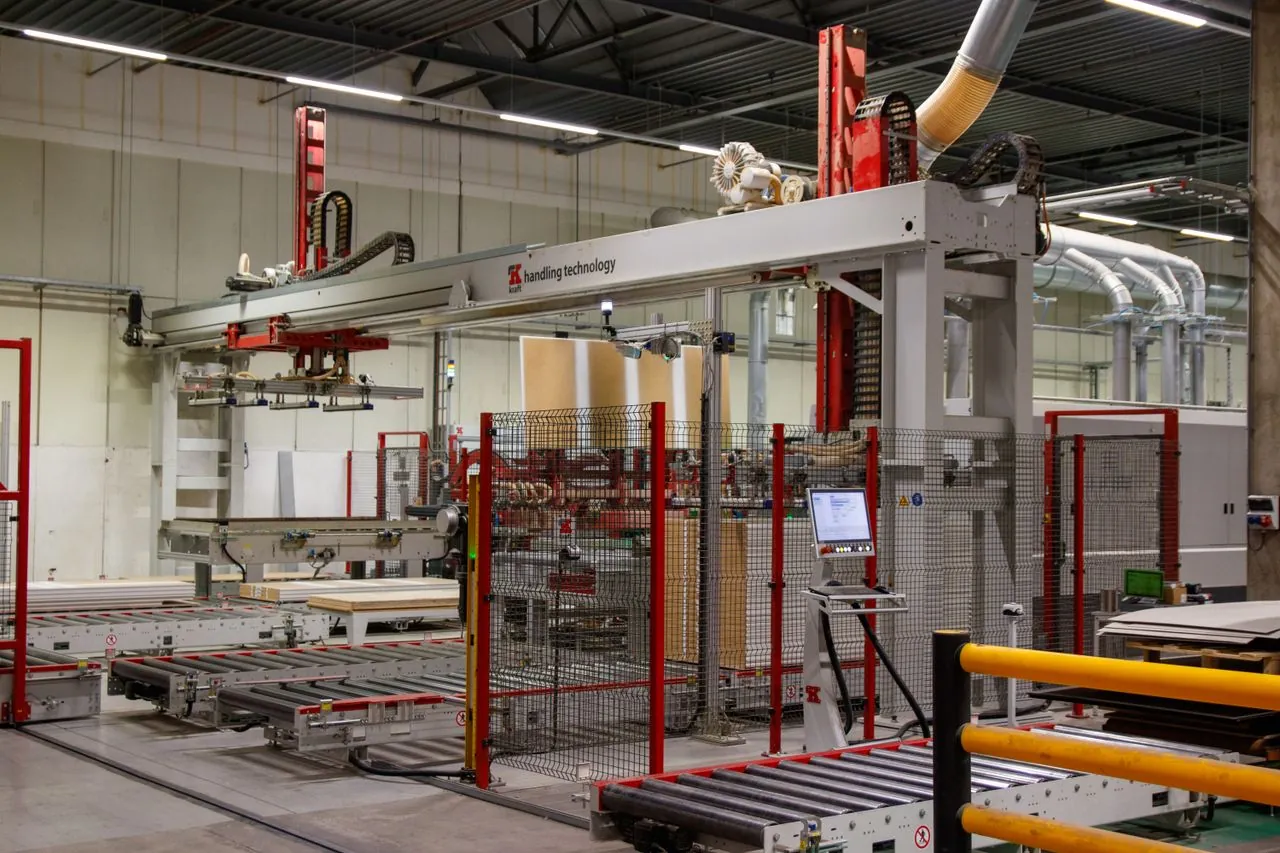

Why Pneumatics Remain the First Choice
The key advantages of pneumatic actuation — simple construction, inherent overload protection, high force-to-weight ratio, and suitability for washdown and ATEX environments — are well understood. What is less appreciated is the energy cost of compressed air. Generating 1 kW of pneumatic energy at the point of use typically requires 7–10 kW of electrical input to the compressor. That reality makes correct specification — avoiding oversized cylinders, eliminating leaks, and selecting the lowest working pressure that satisfies the duty — not just a reliability decision but a significant energy decision.
1. Start With the Cylinder
Bore and stroke determine force and travel. Choose ISO-standard cylinders (ISO 15552 for medium-to-large bore, ISO 6432 for mini cylinders) so spares and mountings are interchangeable across suppliers. Size for the actual load — not the maximum theoretical force — to avoid wasting compressed air. The force output of a pneumatic cylinder is bore area × pressure, reduced by friction and back-pressure; always factor in the friction coefficient (typically 5–10% of theoretical force for well-maintained seals) and confirm the rod is not at risk of column buckling at the chosen stroke length.
- ISO 15552: standard medium/large bore cylinders, magnetic piston for sensing, wide accessory range
- ISO 6432: compact round-body mini-cylinders for tight-space applications
- Guided rodless cylinders: long strokes without rod deflection, excellent for transport duties
- Rotary actuators: rack-and-pinion or vane type for quarter-turn valve operation
- Grippers: parallel and angular jaw types for component handling and assembly

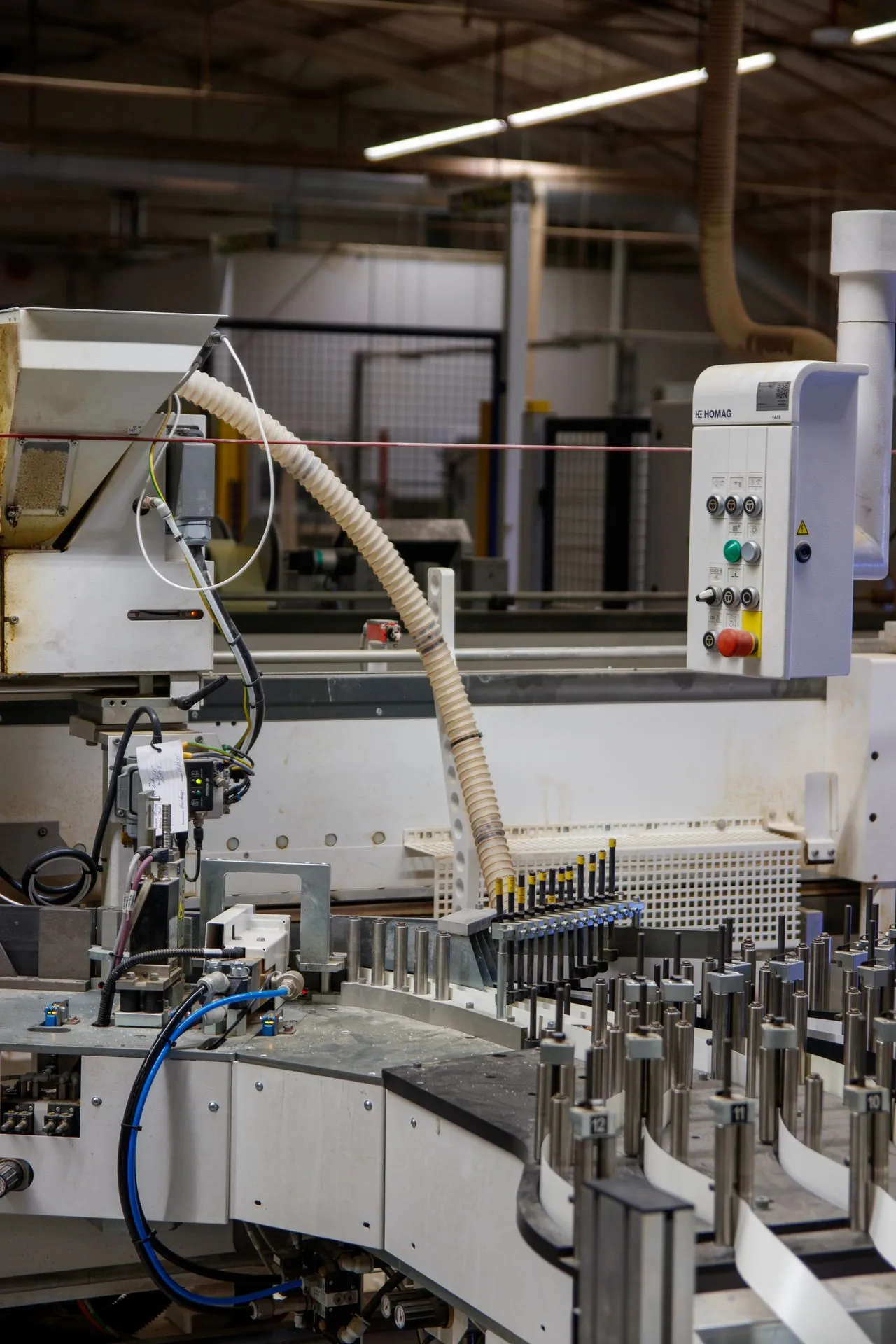

2. Valves and Air Preparation
Directional control valves switch the actuation; FRL units (filter, regulator, lubricator) condition the air to protect components and keep performance consistent. Clean, dry, correctly regulated air is the single biggest factor in pneumatic reliability. Moisture in the airline condenses downstream of the regulator, washes lubricant from seals, and causes corrosion in valve bodies. A properly sized and maintained coalescing filter-regulator upstream of each machine significantly extends the life of all downstream components.
- Specify ISO 15552 / VDMA cylinders for interchangeability across maintenance campaigns
- Size cylinder bore for the real load — not theoretical maximum force
- Condition air with a properly sized FRL unit; replace filter elements on schedule
- Select valve flow capacity (Cv / Kv) to match cylinder volume and cycle time requirements
- Use genuine OEM-branded components for critical safety and process lines
3. Directional Valve Selection
The directional control valve (DCV) routes pressurised air to extend and retract the cylinder. Key parameters are port configuration (3/2, 5/2, or 5/3 way), actuation method (solenoid, pilot air, or mechanical), and flow capacity (Cv or Kv rating). A 5/2 monostable valve returns to its normal position on power loss — the right choice where safe cylinder retraction on power loss is required. A 5/3 mid-exhaust valve stops the cylinder in place on power loss — preferred where halting mid-stroke is safer than forcing a full retraction. Valve island assemblies — manifold-mounted multi-valve blocks — reduce wiring and piping complexity significantly in multi-actuator systems and are the standard approach for modern automated lines.
4. Common Failure Modes and How to Prevent Them
The majority of pneumatic failures trace back to a small number of root causes: contaminated air, incorrect operating pressure, worn seals from inadequate lubrication or overrun service intervals, and oversized cylinders running at reduced pressure — which leaves the system operating near a pressure threshold where small upstream variations cause erratic motion. Establishing a planned preventive maintenance schedule — aligned to actual cycle counts rather than calendar time — is the most effective reliability measure available.
- Contaminated / wet air: replace coalescing filter elements quarterly at minimum
- Seal wear: check lubrication mist settings monthly; replace seals at OEM-specified intervals
- Valve spool sticking: caused by particulate contamination or chemical incompatibility — inspect annually
- Cylinder drift under load: pilot-operated check valves prevent positional drift
- Air leaks: survey with an ultrasonic detector quarterly — a single 1 mm leak at 6 bar wastes significant energy annually
“Genuine OEM components are not a premium — they are the specification. Counterfeit seals fail faster and fail unpredictably.”
— Energy Tech Solution Engineering
5. Genuine vs. Substitute Components
The market for counterfeit and low-quality pneumatic components is substantial. Non-genuine seals, valve cartridges, and cylinder barrels frequently fail at a fraction of the service life of OEM parts — and often fail suddenly rather than gradually, causing unplanned stoppages. On safety-critical applications (clamping jigs, press guarding, emergency stop actuators), the consequences of premature component failure extend beyond downtime to personnel safety. The cost saving of a non-genuine seal kit over an OEM kit is typically recovered many times over in reduced maintenance call-outs and lost-production costs.
As an authorized Pneumax channel partner, Energy Tech Solution helps you specify the right cylinders, valves, FRL units, and air-preparation packages, and holds genuine Pneumax spare parts in stock to minimise your downtime.
